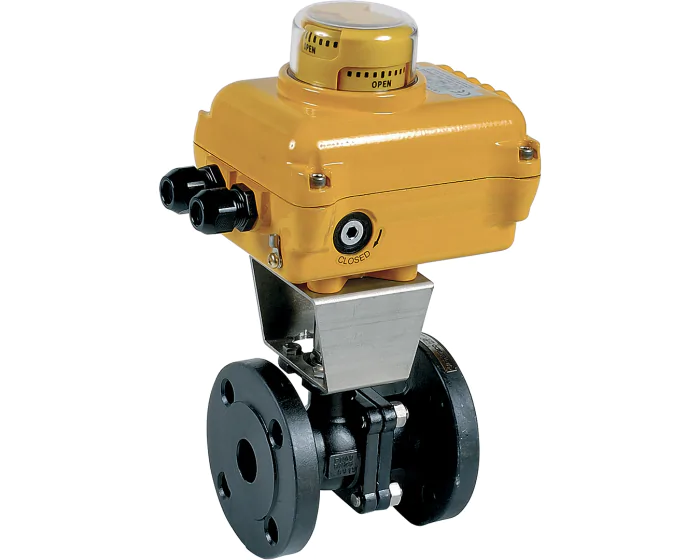

The split-body 762 ball valve has a 1.0619 carbon steel body, a stainless steel ball and PTFE/glass seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 200°C. Flanges PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN150 - 6'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 350.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 90 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 60 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 29.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category II |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 15 | 274242023010 | S1006116 |
€592.91
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 20 | 274243023010 | S1006117 |
€592.99
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 25 | 274244023010 | S1006118 |
€625.33
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 32 | 274245023010 | S1006119 |
€651.59
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 40 | 274246023010 | S1006120 |
€707.89
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 80 | 274249023130 | S1006123 |
€1,623.14
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 100 | 274250023150 | S1006124 |
€1,973.09
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 125 | 274251023150 | S1006125 |
€2,670.50
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body 150 | 274252023180 | S1006126 |
€3,385.93
(excl. btw)
|
add to cart |
